Pico ADC-20/24 Series

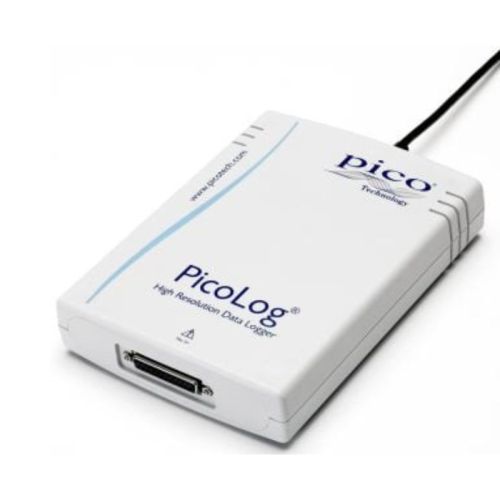

The Pico ADC-20 and ADC-24 (part numbers PP308 and PP309) are high-resolution USB data loggers designed for precision multi-channel analogue signal acquisition in both lab and field environments.
The Pico ADC-20 and ADC-24 are ultra-precise, multi-channel data acquisition systems ideal for accurate logging of low-level analogue signals. Powered directly from the USB port, these compact and portable devices offer 20-bit and 24-bit resolution respectively, ensuring exceptional noise performance and measurement integrity.
- High-resolution 20-bit (ADC-20) and 24-bit (ADC-24) ADCs
- Expandable channel count on the ADC-24 (up to 24 single-ended)
- True differential inputs for enhanced noise rejection
- No external power supply required – USB powered
- Advanced PicoLog software with real-time graphing and data export
- Supports multiple units on a single PC for scalable data logging
- Suitable for use on Windows, macOS, and Linux platforms
-
-
Model Numbers: PP308 (ADC-20), PP309 (ADC-24)
-
Input Channels:
-
ADC-20: 8 differential or 16 single-ended
-
ADC-24: 8 differential or 16 single-ended, expandable up to 24 channels
-
-
Resolution: 20-bit (ADC-20), 24-bit (ADC-24)
-
Input Range: ±2.5 V (bipolar)
-
Sampling Rate: 1 sample per second (max)
-
Interface: USB 2.0 (USB-powered)
-
Input Impedance: 2 MΩ
-
Common Mode Rejection Ratio (CMRR): >100 dB
-
Data Format: 32-bit floating point
-
Software: PicoLog data logging software included
-
Operating System Support: Windows, macOS, Linux
-
-
-
Long-term temperature, pressure, and voltage logging
-
Scientific research and environmental monitoring
-
Industrial testing and process control
-
Educational experiments in physics and engineering
-
Precision instrumentation and laboratory use
-
