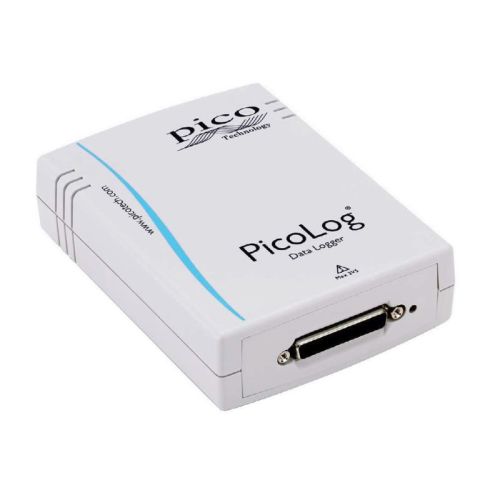

PicoLog 1000 Series
The PicoLog 1000 Series (PP546 and PP547) offers reliable and scalable multi-channel analogue data logging, with USB connectivity and flexible software for a wide range of signal monitoring applications.
The PicoLog 1000 Series, comprising the PicoLog 1012 (PP546) and PicoLog 1216 (PP547), delivers practical and versatile data acquisition with up to 16 analogue inputs. With USB power and PicoLog software, the series is ideal for applications requiring simultaneous multi-channel signal logging, such as in educational environments, process monitoring, and electronics testing.
- 12 (PP546) or 16 (PP547) analogue input channels
- Compact USB-powered design
- 10-bit (1012) and 12-bit (1216) resolution for accurate measurements
- Sample rates up to 1 MS/s (single channel)
- Digital I/O for triggering and control functions
- Expandable system with up to 4 devices connected to one PC
- Supplied with PicoLog software for easy data capture and analysis
-
-
Model Numbers:
-
PP546: PicoLog 1012 (12-channel, 10-bit resolution)
-
PP547: PicoLog 1216 (16-channel, 12-bit resolution)
-
-
Input Channels:
-
1012: 12 single-ended analogue inputs
-
1216: 16 single-ended analogue inputs
-
-
Resolution:
-
1012: 10-bit
-
1216: 12-bit
-
-
Input Voltage Range: 0 to 2.5 V
-
Maximum Sampling Rate:
-
1012: 1 MS/s (one channel), 100 kS/s (all channels)
-
1216: 1 MS/s (one channel), 1.2 MS/s aggregate
-
-
Digital I/O: 4 input/output lines
-
Power Supply: USB-powered
-
Interface: USB 2.0
-
Software: PicoLog data logging software included
-
Operating System Support: Windows
-
-
-
Multi-channel voltage and sensor signal logging
-
Educational labs and demonstrations
-
Industrial and process monitoring
-
R&D prototyping and testing
-
Test benches and automation systems
-
